Series of products of permanent magnet suckers are made of the wear-resistant materials brass, steel and permanent magnet, which are ideal for fixed parts on grinding machines, EDM machine tools, engraving machines and other equipment.

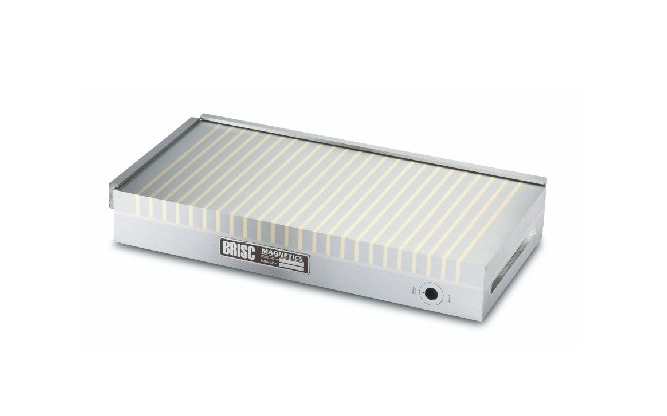

Rectangular all-steel precision permanent magnetic chucks

Characteristics:

1. Avoid the risk of causing the workpiece to fly out due to power loss and magnetic loss as electromagnetic chucks.
2. In the switching process of magnetic circuit switches, the plane accuracy of the magnetic surface remains unchanged.
3. Use the high-efficiency permanent magnet circuit design, and the fixing process doesn’t need the support of electric power.
4. There are available 80, 100, 120, and 140N/cm2, suctions.
5. Parallelism of common products is 0.03mm/100mm, and special specifications can reach 0.005mm/100mm.

Performance:

PART  NO Dimensions(mm) Net weight(Kg) Number(mm) Suction(N/cm2)
L B H T
SWPC41-1010 100 100 45 18 3.6 0.5+1.5 Or 1+3 Or 0.5+1 140 Or 120 Or 100 0r 80
SWPC41-1670 160 70 45 18 4
SWPC41-1515 150 150 48 20 8
SWPC41-1520 200 150 48 20 11
SWPC41-1525 250 150 48 20 13.8
SWPC41-1530 300 150 48 20 16.8
SWPC41-1535 350 150 48 20 19.6
SWPC41-1540 400 150 53 20 23.8
SWPC41-1545 450 150 53 20 26.5
SWPC41-2020 200 200 48 22 15
SWPC41-2025 250 200 48 22 18.5
SWPC41-2035 350 200 53 22 28.5
SWPC41-2040 400 200 53 22 31.8
SWPC41-2045 450 200 53 22 39.5
SWPC41-2550 500 250 58 23 53.5
SWPC41-3060 600 300 58 23 77
